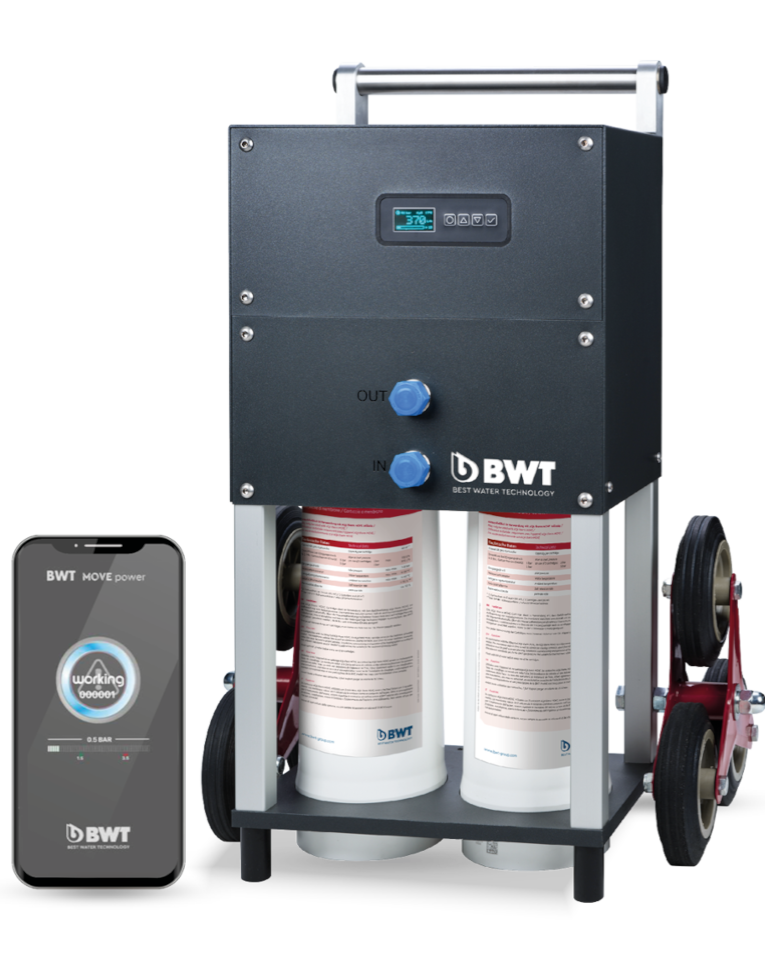

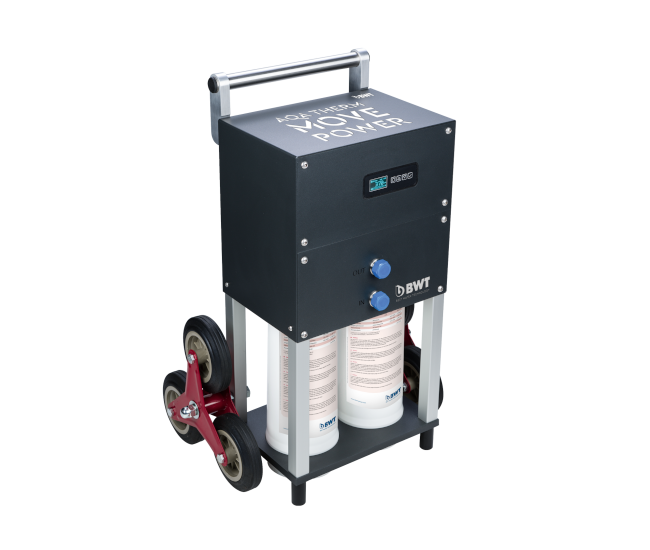

The AQA therm MOVE Power is a compact BWT RO System designed to facilitate the easy, efficient, and sustainable filling of heating systems following the “BWT ReinHEIZgebot” standard. This standard allows for the protection of the heating circuit from Limescale and corrosion without the use of chemicals. Using instead carefully prepared perfect purified water with any damaging salts and contaminants removed.
It comprises of the following components:
Please note: that this product complies with the requirements of German Directive VDI2035 – Chemical Free Water for Heating a series of guidelines set out by the association for the control of water quality for heating water and is referenced in EN12828 a standard applicable to the whole of Europe since 2012.
Technical Data Sheet | ||
Description | Unit | AQA Therm MOVE Power |
Nominal connection width | DN/ZOLL | 20 / ¾ |
Water supply connection | DN | 20 |
DrainConnection | DN | 6 |
Permeate connection | DN | 20 |
Nominal Pressure (PN) | bar | 10 |
Max. operating pressure | bar | 9 |
Feed presure – min/max | bar | 1,5/4 |
Water – ambient temp -min /max | ºC | 5…25/5…40 |
Permeateflow @15º c open outlet new membrane | l/h | ca. 360 |
Permeateflow @15º c 2.5 bar back pressure new membrane | l/h | ca. 320 |
Permeateflow @15º c open outlet end of operating life | l/h | 300 |
Permeateflow @15º c 2.5 bar back pressure end of operating life | l/h | 250 |
Efficiency (WCF) | % | <50 |
Salt rejection – min | % | 95 |

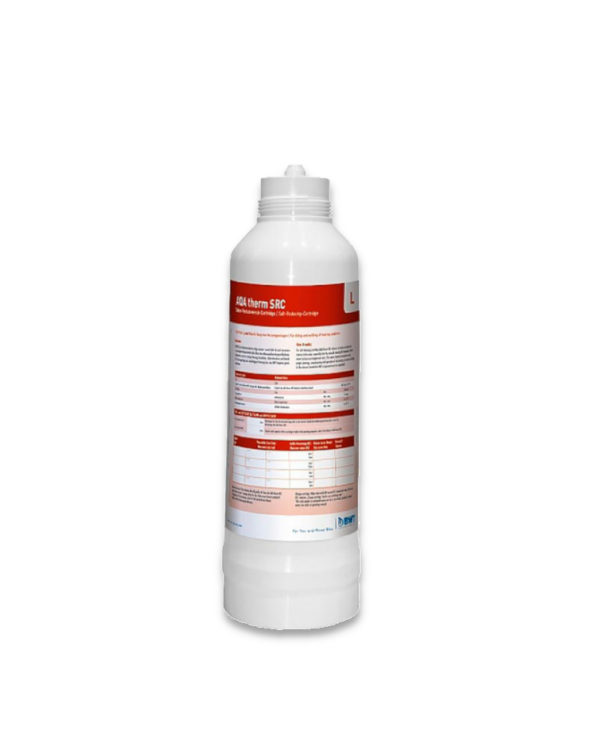

Capacity per membrane cartridge | m³ | 40 |
Membrane cartridges | Anzahl | 2/2 |
Protection class | IP | 54 |
Mains connection | V/Hz | 230/50 |
Power consumption – max | w | 450 |
Fuse Internal | A, trage | 2 x 2.0 |
Pump size | m³/h | 0.8 |
Power consumption pump motor – max | w | 350 |
Pump Motor | VAC/A | 230/2.3 |

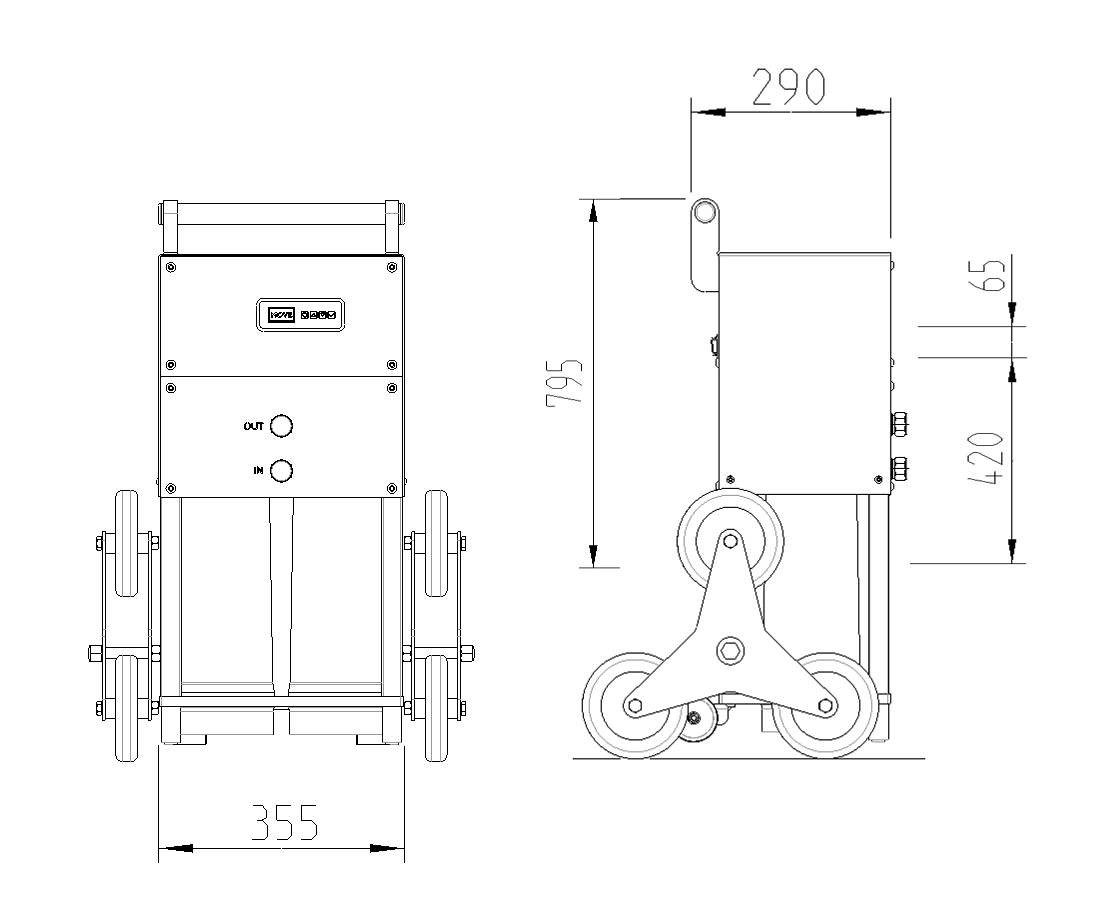

Dimensions without stair wheels (Length x width x Height) | mm | 355 x 795 x 290 |
Operating weight | kg | 44 |
Dry weight | kg | 88.6 |
Item No. | 125299762 |
