The perfect choice for singles, a couple, or a family of 4. This compact Luxury water softener will deliver a plentiful supply of softened water throughout the day thanks to its electronic control system. While its frugal use of salt and water make economic to run.
Sure, here are the bullet points:
Household size: | Up to 4 persons |
Plumbing compatibility: | Standard (Gravity fed) and pressurised systems up 22mm |
Installation requirements: | Close proximity to rising main and stopcock + Standard 13 amp plug socket |
Installation Kit: | 22mm Valves and Flexible hoses (Overflow pipe not supplied) |
Location: | Suitable for standard kitchen cupboard (width >500mm) |
Salt type: | BWT Block or Tablet salt |
Operation: | Electronic control system – softener adapts to your life style |
Regeneration Frequency: | When needed dependent on water used typically every 3 days |
Warranty: | 5 year parts and 2 year @home Labour (Upgradeable to 6 full years) |
Commissioning: | FREE by BWT Engineer |
Approvals: | WRAS |
This is the perfect way to ensure your new Luxury water softener is perfectly set up for you, your home, your lifestyle and your local water conditions. Once set up correctly, your new Luxury Water softener will adapt to your normal water usage. This ensures that you have copious amounts of silky soft Luxury Water and minimises your water and salt usage. BWT’s Free @ Home Commissioning also provides the perfect opportunity for you to ask any questions.
The PS10 Wi-Fi is supplied with a full 5 year parts and 2 year labour @ home warranty. In the unlikelihood that your new softener should develop an issue there is no need to worry about getting it back to us, we will come to you. One of our fully trained engineers will soon have your favourite appliance back up and running again, with no cost to you. When your warranty runs out you can simply top it up for a small fee, ensuring you’re free to enjoy all the benefits of luxury water worry free.
Number of bathrooms | |
---|---|
Pipe size | |
Number of people | |
Hot water system | Combination boiler, Hot water cylinder, Unvented hot water cylinder |

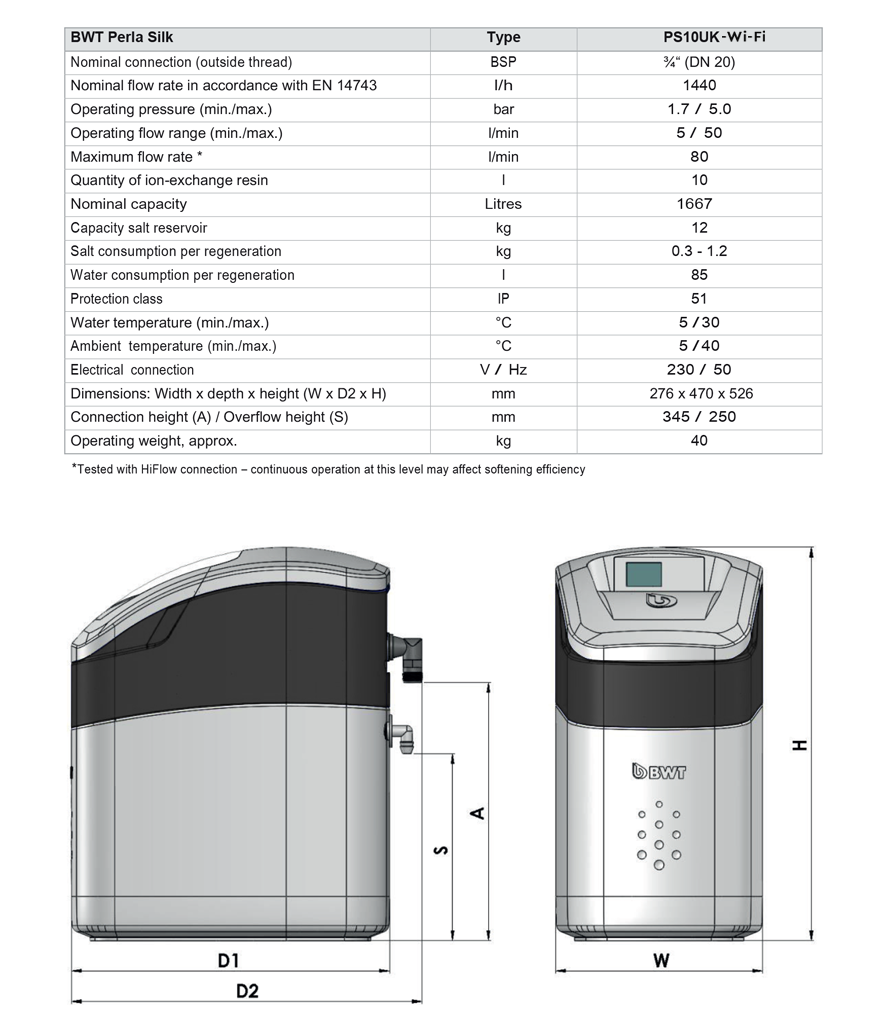

BWT Perla Silk | Type | PS10WIFI |
Nominal connection (outside thread) | BSP | ¾“ (DN 20) |
Nominal flow rate in accordance with EN 14743 | l/h | 1440 |
Operating pressure (min./max.) | bar | 1.7 / 5.0 |
Operating flow range (min./max.) | l/min | 5 / 50 |
Maximum flow rate * | l/min | 80 |
Quantity of ion-exchange resin | l | 10 |
Nominal capacity | Litres | 1667 |
Capacity salt reservoir | kg | 12 |
Salt consumption per regeneration | kg | 0.3 – 1.2 |
Water consumption per regeneration | l | 85 |
Protection class | IP | 51 |
Water temperature (min./max.) | °C | 5 /30 |
Ambient temperature (min./max.) | °C | 5 /40 |
Electrical connection | V/Hz | 230 / 50 |
Dimensions: Width x depth x height (W x D2 x H) | mm | 276 x 470 x 526 |
Connection height (A) / Overflow height (S) | mm | 345 / 250 |
Operating weight, approx. | kg | 50 |
Fitting Kit | mm | Hi-Flow: 22mm Valves and Hoses |
*Tested with HiFlow connection – continuous operation at this level may affect softening efficiency |
What is Hard Water?
Hard Water is water that contains dissolved hardness minerals above 100 parts per million (PPM). Relative levels of hardness have been establish as Soft Water less than 100PPM, Slightly Hard 100 TO 200 PPM, Hard 300 TO 400 PPM, Very Hard 400 and above.
How Does a Water Softener Work?
BWT water softeners work on the ion exchange principle. They work by passing the incoming water supply through the resin bed, that removes all excess minerals and impurities. As a result, the calcium and magnesium cling to the resin beads and are replaced by sodium ions. The resin bed can only capture a certain amount of minerals, and when this limit is reached, the system is regenerated by flushing it with a brine solution. This helps in the removal of calcium deposits and replenishes the resin with sodium ions. Therefore, with water softeners you can easily turn your hard water into softened water.
Can You Drink Softened Water?
There are no real reasons why you cannot drink softened water, for most people it is a matter of choice and lifestyle. However, for those that have installed a water softener, please be mindful that softened water does contain a slight increase in the amount of sodium, the actual amount of which will depend on your local water hardness and is therefore not recommended for people who are on a low sodium diet, for the preparation of baby formula milk, or for areas where the hardness exceeds 390ppm. Please also note in line with guidance an untreated water tap should be available within the property.
Can You Use Water Softener Salt in a Dishwater?
Once you have installed a water softener in your home, it is unlikely that you will need to add extra salt in your dishwasher. Simply change your dishwasher’s internal water softener setting to the off position or alternatively ensure the incoming water hardness setting is at its lowest/softest.
How Much Time Does It take to install a Water Softener System?
The Installation time will depend on where the water softener is going to be installed and the experience of the installer. Given a suitable location with easy access to the necessary services we would expect an experienced installer to allow 3-4 hours. Check out our video on our YouTube channel How to install a BWT Water Softener, where we have explained the installation process.
Are the BWT water softeners Electric Powered?
The WS range softeners use a ‘Plug In’ type transformer. The low voltage system is used to power the electronic control system and the valve during regeneration. The result is a water softener that can be set up to suit your local water conditions and that can adapt to your lifestyle. The electricity used is minimal and the small diameter cable from the transformer can in most cases be easily routed from the socket to the softener.
